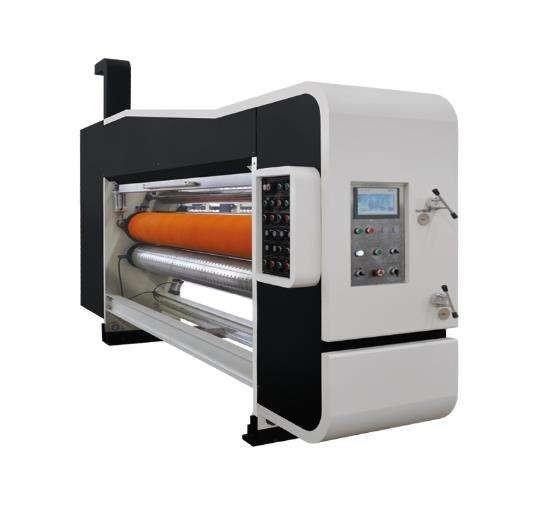

Full Automatic Printing Slotting Rotary Die Cutting Folding Gluing
Machine Printer Slotter Die Cut
function and characteristic
1. The total machine electric and computer adapt famous brand.
Stable and reliable quality . adopt human-computer interface ,
computer order management . easy to operate .
2. Whole machine frame and important part are being aging
treatment, tempering eliminate the stress of metallic; all of them
come from high precision processing center, CNC grinding machining
process.
3. All the rollers are high quality steel, high precision Computer
dynamic balancing correction of hard chromium plating, surface
grinding.
4. The transmission gear adopt 40 CrMin Ti high quality alloy steel
which is grinded, and after the heat treatment ,it can up to six
precision, Its surface with rockwell hardness HRC58-62, make color
more accuracy.
5. All machine transfer unit (roller , gear connect ) adopt shrink
disk connect . clearance of conncetion .used to long time high
speed running .
6. The machine lubrication system uses a spray automatic
lubrication,
7. The whole machine have preset function .lead edge unit , printer
die cut . automatic zero . memory automatic reset .
8. The whole machine working gap adjustment, using wrench-free
quick adjustment, fast and convenient to carry out adjustment. The
main engine adopts frequency conversion control, starting, running
more smoothly, more energy saving.
Main specifications:
| NO | Parameter name | Unit | Specifications |
| 1 | Machine inside width | mm | 2500 |
| 2 | Max speed | pcs/min | 200 |
| 3 | Economic speed | pcs/min | 150-180 |
| 4 | Max feeder paper size | mm | 900×2200 |
| 5 | Min paper | mm | 350×700 |
| 6 | Max printing size | mm | 900×2100 |
| 7 | Interval one paperboard feeder size | mm | 1000×2200 |
| 8 | Color accuracy | mm | +1 |
| 9 | Standard plate thickness | mm | 6-7.2 |
| 10 | Thickness of the board | mm | 2--11 |
| 11 | Minimum slotting spacing | mm | 300×100×300×100 |
| 12 | Maximum depth of slotting | mm | 225 |
Our Services
1. Pre-Sales Service:
Our service team will glad to reply inquiry and consulting support
in every way as soon as we can.
2. Package & Delivery
Our service team will pack goods under export standard, and prepare
delivery in time as agreement.
3. Technical Support:
To ensure you get a top-notch experience, we can send our engineers
to help you install properly, as well as provide local training for
your employees.
Our service team will give you 24 hours support, and technical
guidance by email, telephone, what's app and fax for regular
maintenance and support.
FAQ
Q: How does your factory do regarding quality controlling?
1) All raw material we used are environmental-friendly
2) Skillful workers care every details in handling the producing
and packing process
3) Quality control department are specially responsible for quality
in each process
We produced high quality products by introducing advanced
technologies for over 20 years, and our products are also widely
exported to many different countries including Russia, the Middle
East, Africa, Southeast Asia, EU, etc, earned a high reputation
among the customers.
Q: Can I customized the machine from your company?
A: Of course you can,we can manufacture the machine based on your customsized requirement.
