The introduction
The 2 layer corrugated paper machine production line is the ideal
and perfect equipment for small or medium carton factories.This
corrugated paper line consists of three machines. There are roll
stand , single face 2 layer corrugated machine and sheet cutter .It
is known as the heart of the "corrugated cardboard production
line".It is the key equipment from single-layer paper to
double-layer corrugated paper . The production line has rational
structure design, advanced producing flow, high efficiency, strong
batch adjustable, easy operation, etc. good work conditions.
Single facer groups include : mill roll stand , 2 ply single facer
, cutter, single tile paper machine
1. Mill roll stand : single facer fully automatic corrugated box
machine
(Also named corrugated carton making machine)
Structural features: symmetrical structure can be installed at the same time two bundles
of paper tube, can be used for non-stop machine to change the paper electric o clamping, release, moving on the left and right brake adjustment using disc plate system. with two-stage automatic expansion of the paper clip, clamp head
size 3 inch |
TECHNICAL PARAMETER 1. paper stand active model: Mechanical electrical 2.clamp paper scope : max 1400mm , min 100mm 3.clamp diameter : max 1400mm 4.single side max load weight : 1500kgs 5.power : 380 volt ,50hz 6.Turn over motor power : 1.5kw /set clamp motor power : 0.75kw 4
set 7.manual brake model ( option pneumatic brake model ) 8.electric brand : DELIXI CHIT 9. machine weight : 2.3T |

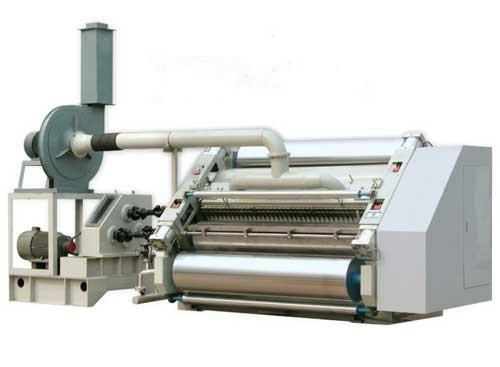

2. 2 ply single facer : single facer fully automatic corrugated box
machine
(Also named corrugated carton making machine)
Characteristics 1. Cover vacuum suction. 2. Corrugating roll is made of high quality alloy steel48CrMo, the surface is medium-frequency quenched and chrome-plated.
Hardness can reach HRC55~60, which ensures good wear-resistance and
long life service. 3. No gear transmission. 4. Glue roll is lifted and lowered pneumatically. 5. Independent glue clean device and electric glue-separate board
to control the width of glue. 6. Manually regulate or electrically regulate the display device. 7. Lubricated by high temperature lubricate grease. 8. Surface of all dancing rolls and preheating rolls is grinded and
chrome-plated. 9. Pressure roll is medium- frequency quenched and chrome-plated. 10. Width 1200mm~2000mm. 11. Preheating rolls, pressure rolls and corrugating rolls all meet
the National Standard of Pressure Vessel. Working pressure is
1.1MPa. |
Technological Parameters
| Working Width | 1600mm |
| Heating method | electrical heating |
| Design speed | 80m/min |
| Economical speed | 45-60 m/min |
| Compress-air pressure | 0.4-0.9MPa |
| Flute type | Standard flute | UVE Flute |
| Standard spec. | E |
| For other type and model, we can produce as customer’s requirement. |
| Corrugated roll diameter (mm) | 280 |
| Wall Thickness (mm) | 130 |
3.Sheet cutter : single facer fully automatic corrugated box
machine
(Also named corrugated carton making machine)
Rotary sheet cutter is important unit of the single facer group ,it
slit the corrugated paper . adopt the Continuously Variable
Transmission tech which developed technicial in china and foreign ,
And manual controlable system ,adopt the mechnical system slit the
paper ,rise the products efficiency .reduced the work strength
The related products
1.From coil to 2 layer board machine series ( This machine groups introduced as shown above)
-roll stand
-single face machine
-sheet cutter
1. from 2 layer board to 3 layer or 5 layer board machine series
-laminating machine
-pasting machine
-pressing machine
-thin blade machine
2. from 3 layer or 5 layer corrugated board to corrugated flat box
machine series
-carton box printing slotting die cutting machine
3. from corrugated flat box to three-dimensional box machine series
-stand shape fold glue machine
-Hook bottom machine
-4 -6 corner fold glue machine
-stitching machine
