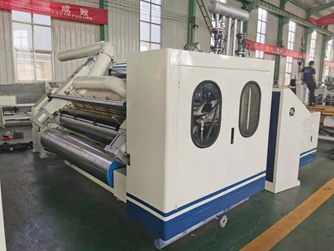

Corrugating Single Facer Corrugated Carton Box Machine
Structural feature
★adopt suction hood structure,matched high pressure powerful fan.
Suction with silence, gas supply and electrical control cabinet to
focus on the same operation,away from the host is not less than
1.5m.Operating side closed full cover.
★the base and wallboard cast iron structure, the thickness of
wallboard is 200mm.Independent gear box, universal joint
transmission structure.
★corrugated roller material adopt 48CrMo alloy steel,diameter of
corrugated roller main roller ¢ 280mm,Quenched, CNC grinder
grinding, IF quenching, surface finish,surface tungsten carbide
dealing, surface hardness above HV1200 degree.Bearing of corrugated
roller and pressure roller key parts adopt Timken bearings produce
heat.
★pressure roller ¢ 280mm,surface grinding and dealing with
chrome,cylinder control moves up and down,No. 45 carbon steel
material, quenching (with cushioning devices).
★glue wallboard adopt skateboard-type structure, pneumatic control
glue to glue back, diameter of glue roller is ￠240mm, engraved
polished surface after a 25-line pit style textured machined chrome
plated,After scraping the roller surface polished hard chrome
plated.
★glue part can remove overall, exchange glue roller quickly and
convenient.Electric compartment plastic, electric adjustment amount
of glue Digital.
★material of corrugated and pressure is provided by zhongyuan
tegang,corrugated roller side 0.15mmon high, pressure roller side
0.075mm high.Add limited device.
★ corrugated roller and pressure roller adopt air spring pressure
device, and working stable .
★preheat roller adopt seamless steel pipe produced by tiangang¢
320mm,All metal hose connection.
※technical parameters
- effective width:1800mm
2,operate direction:left or right(Determined in accordance with the
customer's facility)
3,design speed:100m/min 4,range of temperature:160—180℃
5,air source:0.4—0.9Mpa 6,steam pressure:0.8—1.3Mpa
7.equipment:Lmx3.5*Wmx1.7*Hmx2.2 8,single weight:MAX 4500Kg
9.Flute type :according to customer request
※Roller diameter parameters:
1,corrugated roller:up￠280mm down￠280mm pressure roller:￠284mm
2 ,glue roller:￠240mm fixed paste roller: ￠140mm preheat
roller:￠240mm
►Common Spec:
1. Working width: 1800mm
2. Design Speed:100m/min Working Speed: 60-80m/min
3. Temperature: 180—200℃
4. Air pressure: 0.8—1.3Mpa
►Spec of Motor:
Main Motor: 7.5kw
Nominal voltage:380V 50Hz Continuous (S1) working Type
