3 5 7 Ply Corrugated Carton Box Machine Automatic Electric Driven

Ask Lasest Price
Brand Name :	Hh
Model Number :	1600mm
Certification :	CE ISO9001
Price :	Negotiation
Payment Terms :	L/C, T/T
Supply Ability :	10 sets every month
Delivery Time :	15 days

Add to Cart

Product Details
Company Profile

3 5 7 Ply Corrugated Carton Box Machine Automatic Electric Driven

3 5 7 ply automatic corrugated cardboard carton box production machine line

1. Designed speed: 100 m/min

2. Available width: 1400 mm 1800 mm.

3. Flute type: A, C, B, E, for option

4. Suction blower type paper delivering with air speed adjusting device, to keep good flute shape under high speed running

5. Gluing section applies with automatic, self-circulating glue supply

6. Immersed / closed gear box lubricating to reduce noise, universal joint power transmission, to insulate vibration, frequency-changing main motor drive

7. Surface treatment of gluing rollerlxc280s: Engrave reticulate and chrome plated .

8. Adjustment of upper corrugating roller, pressure roller, and glue roller, is controlled by pneumatic system

9. Bearings of upper/lower corrugating roller, and pressure roller, use high-temperature-resist lubrication to keep running smoothly and durably

10. Upper and lower corrugating rollers are made of 48CrMo alloy steel, with heated-treatment for hardness HRC56-60, and the surface is well treated by grind , also be well treated with slitting machine, carton box making machine corrugated cardboard machine.

Technical Parameters

Machine Mode	Mode 1400	Mode 1600	Mode 1800
Working Speed	0-100 m/min	0-100 m/min	0-100 m/min
Flute type	A C B E F	A C B E F	A C B E F
Heating type	steam,oil,electric,gas	steam,oil,electric,gas	steam,oil,electric,gas

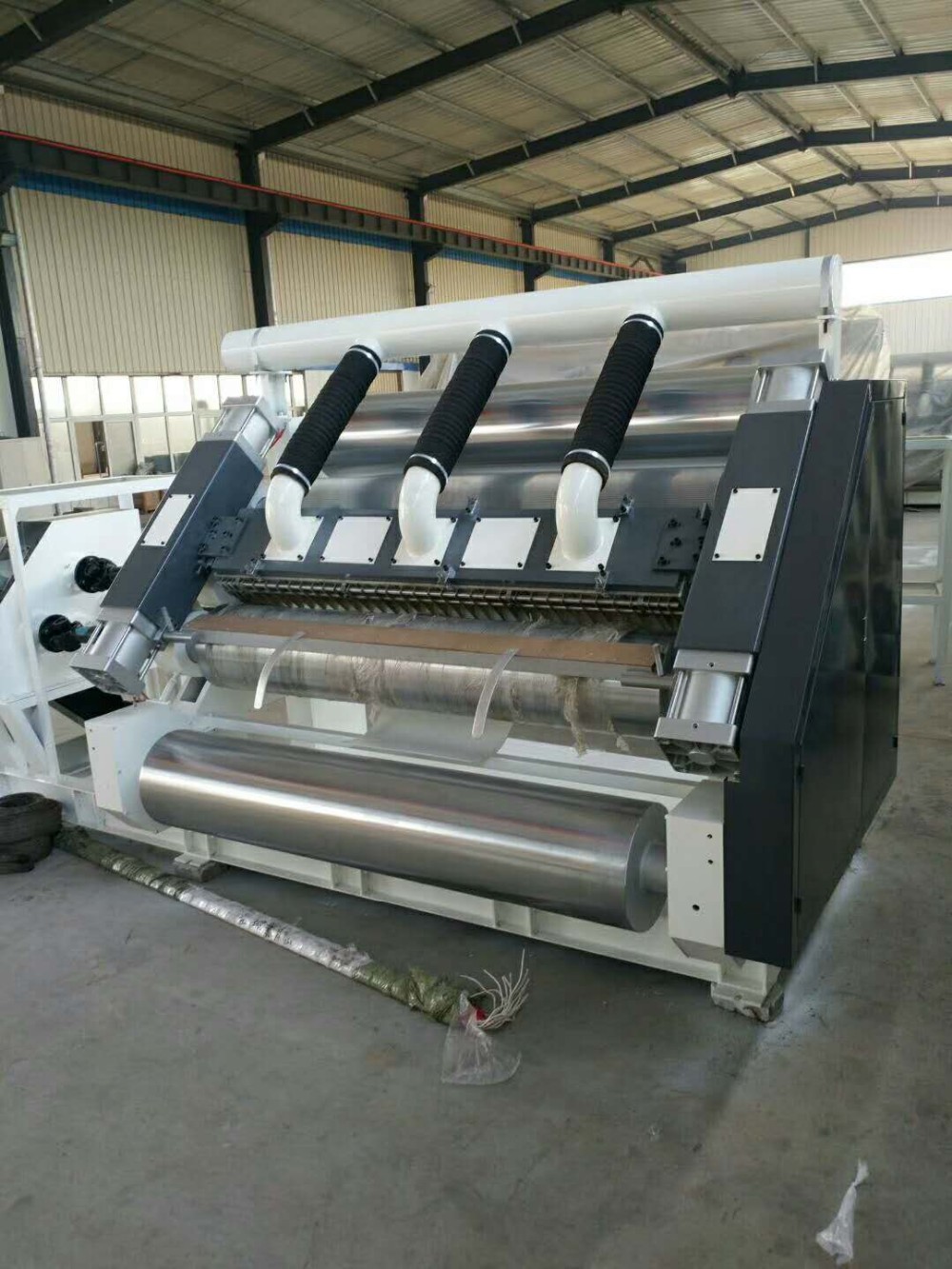

Detailed Images

3 5 7 Ply Corrugated Carton Box Machine Automatic Electric Driven

Packing & Delivery

FAQ

1. Q: Are you a factory or trading company?

A: We are manufacturer. Our factory is Longway Carton Machinery Manufacturer in China,that a professional manufacturer of many kinds of carton box machinery,our machinery are high stable quality with more competitive than other suppliers.

2. Q: Where is your company located? How can I visit there?

A: Our company is located in Dongguang County,Cangzhou City,Hebei Province. We are near from Beijing/Tianjin city, only need 2/4 hours,We can arrange car to pick up from airport or hotel

3. Q: Do you have any working machine for us to visit?

A: Yes,We have running machine near our factory also in our city, we can arrange visiting

4. Q: How is the warranty of the machine?

A: Our machines have ONE YEAR WARRANTY. And the engineers available for overseas service.

5. Q:Is it safe on the payment for me as we are the first cooperation?

A: We can do the trade assurance on Alibaba, which will guarantee your products receiving, we also accept other safe payment way as you want.

IF you are interested in 3 5 7 ply automatic corrugated cardboard carton box production machine line ,please feel free to send us your inquiry, we promise to make quotation for you!
