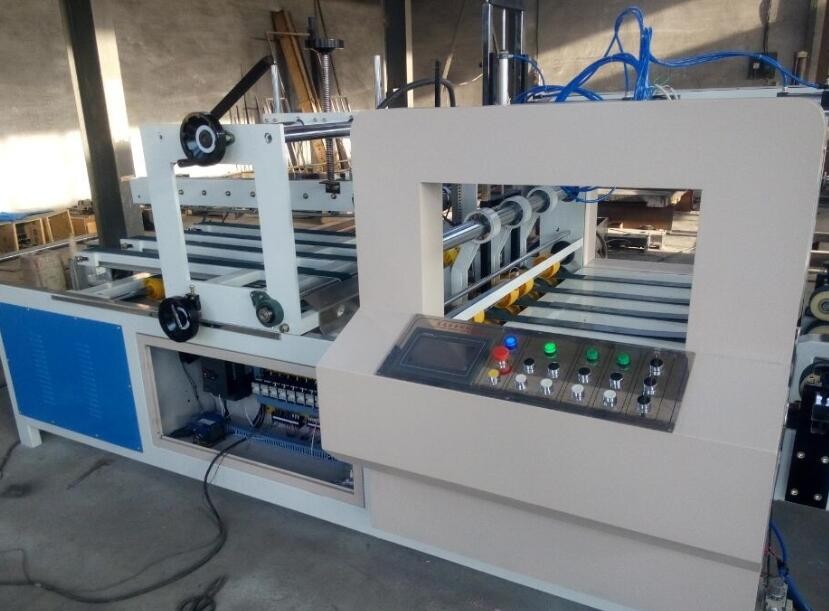

Folding Gluing Gluer Carton Box Forming Cardboard Carton Box Machine

carton box folder gluer machine is special for packing carton boxes's folding and gluing processing, it can fold the die cutted carton box automatically, then glue the boxes automatically; It is automatc cardboard feeding, and can also be connected with automatic cardboard printing and slotting machine, to reach a higher production capacity. Thie machine has high production capacity, also need less labours compared with the semi-automatic carton box gluing machine, it is very suitable for medium and large carton boxes manufacturers.

Main specification

Max carton box size (L+W)*2: 2600mm
Min carton box size(L+W)*2: 600mm
Max carton box size(W+H)*2: 1515mm
Min carton box size( W+H)*2: 260mm
Cardboard feeding height: 900mm
Working speed: 50-70 pieces/min

Feature

Simple and reliable operating system ;
The overall design of novel and smooth ;
Quickly carton box sizes change ;
Automatic counting, packing set ;
The minimum width plus height carton paste around 240mm

Haohan co.,ltd is professional manufacture in Corrugated Carton Machine, like Corruated Cardboard Production Line, Flexo Printer and other Machinery, supplying for world market. All machine have got ISO 9001:2000 Certificate. The main products of corrugated board production line include single layer, 3-layer, 5-layer and 7-layer Corrugated paperboard Production Line. Our company has been running since 1984 and is located in Cangzhou City, Hebei Province. With strong technology team, the machine is better and better, the workers is skilled more and more. Products has been exported to Russia, the Middle East, Southeast Asia and other countries and regions. Wish well cooperate with business friends from all over the world.
