Brand Name : | Hh |
Model Number : | 900*2000mm |
Certification : | CE ISO 9001 |
Price : | Negotiation |
Payment Terms : | L/C, T/T |
Supply Ability : | 10 sets every month |
Delivery Time : | 15 days |

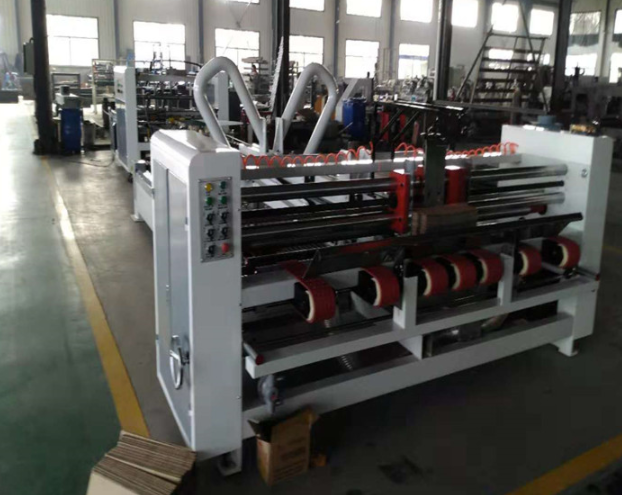

Automatic Folder Gluer Corrugated Carton Box Machine
Automatic Folder Gluer machine consiste of three sections:vacuum feeding section, gluer&floding section, counter &stacker section.
Main specification
Model | 2400 | 2500 |
Max cardboard | 900x2200 | 1200x2500 |
Min cardboard | 300x900 | 300x900 |
Power Required | 11.5kw 380v 3 phase 50HZ | 14.5kw 380v 3 phase 50HZ |
Paperboard thickness | 3 or 5 layer paperboard | 3 or 5 layer paperboard |
Control | PLC control | PLC control |
Feature
adopt suction hood structure,matched high pressure powerful fan. Suction with silence, gas supply and electrical control cabinet to focus on the same operation,away from the host is not less than 1.5m.Operating side closed full cover.
![]() |
