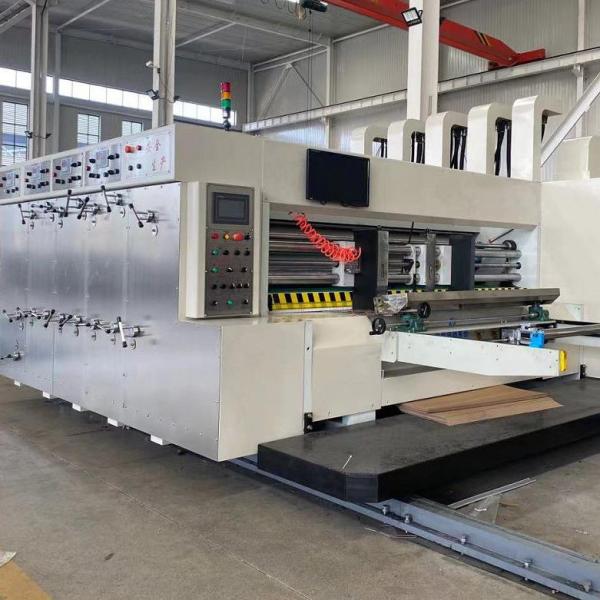

Flexo Carton Box Two Colors Printer Slotter Rotary Die Cutter With
Stacker Machine
1, Operation-control switch(PLC computer control)
2, it’s control iak roller automatic up and down, printing plate
after wash clean, automatic Memory reset, Personalized alignment
cardboard , quota to complete automatic standby , and other
functions
3. The main transmission adopts high quality steel, after quenching
treatment, finish rolling gear processing, can achieve the four
level of accuracy of high hardness, high precision gear.
4. Key free space connector, eliminate traditional connection,
maintain long-term accurate color printing, the transmission
mechanism adopts spray lubrication, automatic lubrication system.
5. Between the units using cylinder lock, and the whole machine has
a strong lock to the self - locking mechanism to ensure the
stability of the unit.
Lead edge feeder unit
1. Adopt vacuum absorption lead edge feeder, high pressure
centrifugal fan auxiliary feeding paper, wind adjustable.
2. adopt unique quick change type half wheel mechanism to ensure
the consistency of feeding position, avoid feeding wheel circle
wear is not the same, and replacement is very convenient.
1. The ink supply device is provided with an ink penetration
leather pad and a sputtering ink return mechanism,,to prevent ink
outside impact printing quality.2. With a digital display of the function of the planetary gear
type accompanied by the adjustment of the plate is electric phase
adjustment.3. Metal anilox roller with rubber roller.
4. Optional: Ceramic anilox roller with doctor blade
Slotting unit
1. The roller with the latest design precompression is adopted to
protect the paperboard from damage.2. Equipped with the button left and right to synchronize the
electric axial movement of the motor, make the upper and lower
creasing line move together, the upper and lower slotting knife,
make the synchronous adjustment, and electrical adjusting box
height function.
3. With the digital display function, the planetary gear type phase
adjustment mechanism is used to carry out the electric adjustment
of the slotting phase and the box height.
4. new desigh rubber creasing wheel. Avoid cardboard damage
Rotary die cutting unit
1. Die - cutting roller with planetary structure, high precision,
large bearing capacity, stop, operation can be electric digital 360
- degree adjustment.2. The roller is hard chrome plated steel surface quality, and
balance, increase its running stability and reliability.
3. Optional: with slotting knife attachment
Vibrating stacker
1. Answer the paper arm The machine has manual and automatic
operation.2. Platform lifting Strong chain drive. The stack height is 1600mm.
Platform lift drive motor with brake function, the platform can
maintain a fixed position, will not decline. 3. Paper baffle. The
pressure action of the paper tray, when the board is piled up to
the predetermined height, the paper tray is automatically extended
to hold the cardboard. The rear baffle position is manually
adjusted. Plane wrinkle belts to prevent the cardboard from slipping.
