Flute Laminator Corrugated Carton Box Machine

Ask Lasest Price
Brand Name :	Hh
Model Number :	1300mm 1600mm
Certification :	CE EAC
Price :	negotiated
Payment Terms :	T/T
Supply Ability :	10 sets every month
Delivery Time :	15-30 days

Add to Cart

Product Details
Company Profile

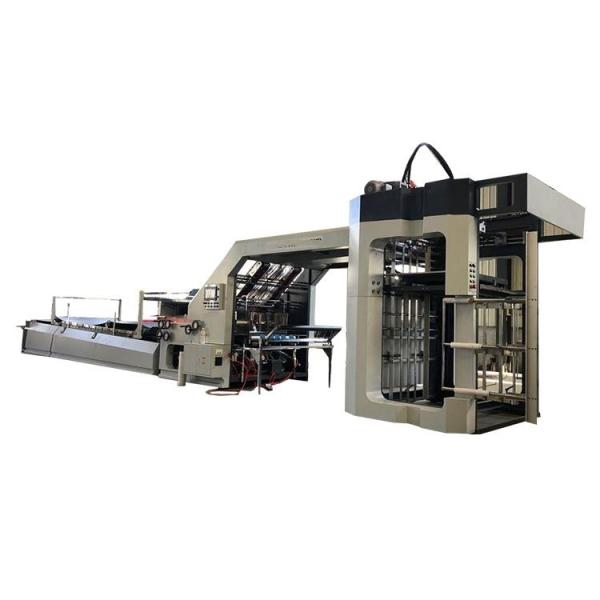

Flute Laminator Corrugated Carton Box Machine

Function and characteristics

1. The vacuum suction-type feeding system can lead the paper accurately into the machine; Cycle stacking planes could stack the next batch paper well in a state of non-stop working , more efficient.
2.Bottom sheet use suction auto feeding, automatic tracking according to the face paper's speed.
3. New concept front gauge location, position high accuracy, bottom sheet never pull ahead.
4. Machine uses touch-screen/PLC/servo motor control system, circuit system is stable and could display the failure alarm automatically.
5. Automatic gluing, and the glue can be used circulatory, avoid glue waste.
6. Roller design scientifically, avoid glue fly out when the speed is high.
7. Pressure rollers adopt one side adjustment, convenient and fast.
8. Rocker controls wash roller's fluctuation, easy cleaning.
9. Counter designs scientifically, easy recording the amount you have been worked.

Model	1300	1600
Max size of cover face	1300mmX1100mm	1600X1100
Mix size of cover face	400mmX400mm	400X400
Economic speed	0-120 piece/min	0-120 piece/min
Precision	±1.5MM	±1.5MM
Power	10kw	10kw
Size	10m x 2m x 2.4m	10m x 2m x 2.4m
Weight	About 5.5T	About 6.0T
