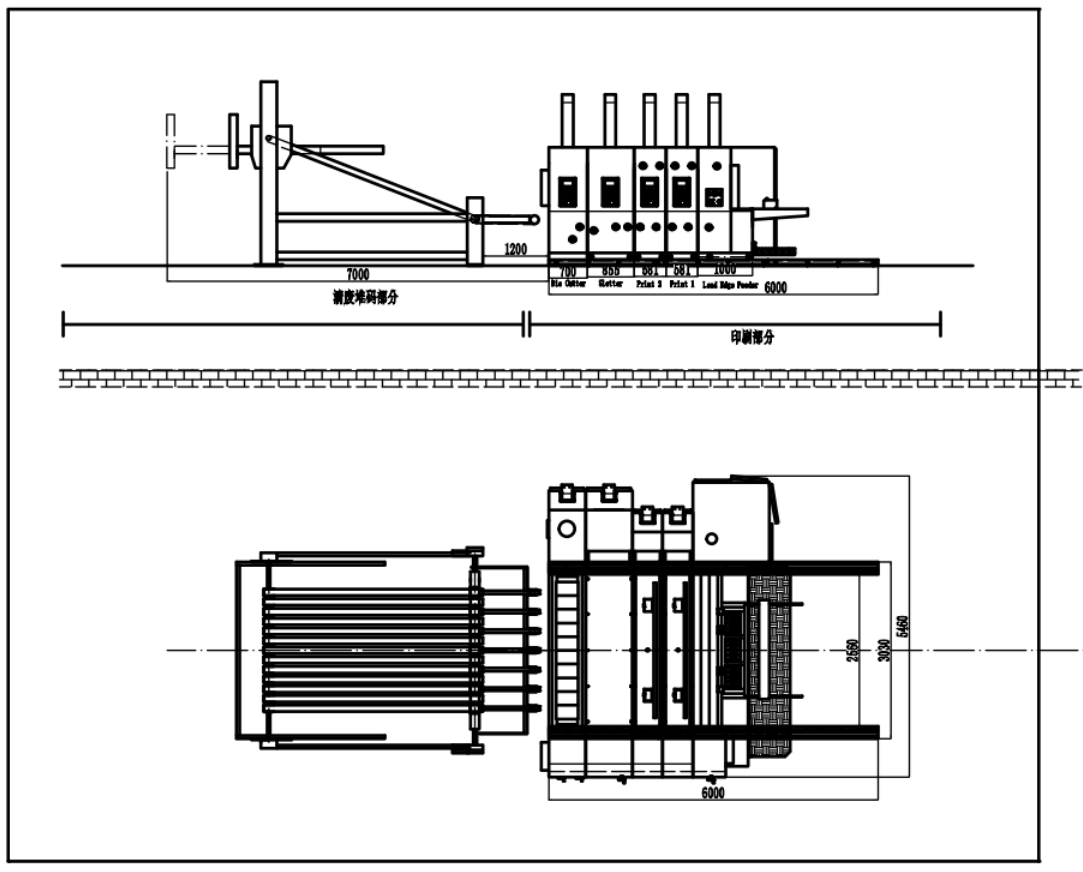

Flexo Printer Slotter Die Cutter Stacker Corrugated Carton Box Machine

1.Electric control machine clutch attached to an alarm, warning road between the continuous ringing, to ensure the safety of
workers.
2.Equipped with high effective brush roller and rows of brushes dust removal device.
3.Feeding unit is designed to be a perfect feeding system with functions of two vacuum suction transmission box, feeding roller,
bush roller, and electrostatic dust.
4.Carton use automatic zero device, two test print can be adjusted to the correct position, reduce the waste of cardboard.

• Print unit

1.High quality cerimic anilox printing roller with doctor blade.
2.The anilox roller with quick-change structure, convenient maintenance and maintenance of the machine.
3.Full vacuum transfer type with belower,high precesion transfer vacuum box.
4.The printing nip Worm electric adjustment, digital display, the adjustment range of 0-12mm.
5.Automatic induction ink detection system, including warning lights and alarm bells.

Computer Slotter unit

1.The device self-locking function, the preload and quick adjustment mechanism ensures the
long-term accuracy between the disc and the shaft, and reduces the cracking of the paper when pressing.
2.There are buttons, left and right synchronous intersections, electric axial movement, so that the upper and lower pressure line
wheels, the upper and lower grooved knives are adjusted synchronously, and the electric adjusting box is highly functional.
3.A planetary gear type phase adjustment mechanism with digital display function is used for electric adjustment of the slotting
phase and the height of the slotting box.

• Rotary Die Cutter unit

1.Die cutter phase adopt gear system, can be electric adjust 360 degree.
2.If stop feeding, the roller auto lifting,less demage
3.Rubber plate roller can be lift right adjust 30mm,each balde cut in different position.
4.Up and down roller diameter different,but the line speed is same.can be control the die knives no stop working.make the plate
grinding uniform.
5.Line speed compensation device,when the rubber roller diameter chnage,the line speed will be compensation use this system.
